Discover Our Standard Yacht Solar Arch Designs

       Designed with precision and crafted for your lifestyle, our standard yacht solar arch range offers the perfect blend of technical solutions and everyday functionality. Each design is engineered to optimize solar power capture while delivering robust marine-grade strength and flexible features that enhance onboard living. Whether you want to declutter your deck, lift heavy tenders, mount navigation and communication equipment, or create lounging and storage spaces, our solar arch systems adapt seamlessly to your needs.

       This page provides technical specifications to help you understand the capabilities and limitations of each model. Transparent pricing brackets ensure you can plan your upgrade with confidence. Experience the freedom of clean decks, smarter storage, and smarter sailing powered by reliable solar energy harvesting system and unlimited functionality.

    • Convenience and versatility

    • Streamlined and sturdy design

    • Crafted from Mirror Polished 316 Stainless Steel

    • Easy to assemble and self-install

    • Ships worldwide in a compact package

    • Variety of additional brackets available for different applications

    • Tube size: OD 38-50.8mm

    • Wall thickness: 1.6–2 mm

    • Material: Stainless Steel 316

    • Finish: Mirror polished

    • Fittings: Welded fitting plates, fabricated to suit the shape of the boat.

  • This design can be improved with:

    • Inner Rail (like in the sample pictures)

    • Davits (removable, swivel, or integrated) or lifting eyes

    • Wind generator bracket

    • Aerial brackets

    • Radar Dome Bracket

    • Outboard crane

    • Cup holder

    • Corner seats

    • Extra grab rails

    • Extended handrails

    • Flag pole

    • Navigation light brackets

    • Ski pole

    • Extra loops

    • Cleats

    • Paddleboard storage

    • And more

  • Installation
    The Universal Solar Arch is specifically designed for easy installation without the need for welders or specialist assistance. Its adjustable width allows two people with basic DIY skills to fit the frame.

    Tools you might need:

    • Grinder with cutting disc

    • Spanner set

    • Drill with drill bits suitable for stainless steel

    • Marine mastic/sealant

    • Marker

    • Masking tape

    • Measuring tape

    • Allen keys/hex keys

    • Screwdriver set

    • Safety glasses and gloves

    We also offer professional installation by our qualified engineers for those who prefer a turnkey service.

  • The standard price:   £4200(+VAT)

    It is a price for this design in its basic configuration (standard completion).

    Additional features, customizations, and modifications may be available at extra cost.

    • Affordable without compromising quality

    • Crafted from Mirror Polished 316 Stainless Steel

    • Minimum Tube outside diameter (OD) 38mm

    • Simple, elegant, and minimalist design

    • Compact and neat, fits modern and classic boats

    • Sturdy platform for accessories like inner rail(like in the picture), davits system, navigation systems, Stern lights, and more

    • Can be integrated with pushpit or used as a standalone arch

    • Tube size: Standard OD 38mm - Upgrade to 42-50.8 mm

    • Wall thickness: 1.6–2 mm

    • Material: Stainless Steel 316

    • Finish: Mirror polished

    • Fittings: Welded fitting plates, fabricated to suit the shape of the boat.

  • This design can be improved with:

    • Inner Rail (like in the sample pictures)

    • Davits (removable, swivel, or integrated) or lifting eyes

    • Wind generator bracket

    • Aerial brackets

    • Radar Dome Bracket

    • Outboard crane

    • Cup holder

    • Corner seats

    • Extra grab rails

    • Extended handrails

    • Flag pole

    • Navigation light brackets

    • Ski pole

    • Extra loops

    • Cleats

    • Paddleboard storage

    • And more

  • The Eiviva Arch features a more complex structure that requires precise engineering. Once all fitting positions are carefully measured and replicated, and if configured as a free-standing unit (not integrated with the pushpit), it can be installed by yourself. We strongly recommend professional installation.

  • The standard price:   £4800(+VAT)

    It is a price for this design in its basic configuration (standard completion).

    Additional features, customizations, and modifications may be available at extra cost.

    • Crafted from Mirror Polished 316 Stainless Steel

    • Similar to Eiviva, but with a large top frame for more or bigger solar panels

    • Standard Tube outside diameter (OD) 42mm

    • Not compatible with all boats; some modifications may be needed

    • Sturdy platform for accessories like davits system, navigation systems, Stern lights, and more

    • Basic standard version with a single-plane side frame and a straight (not curved) top

    • Can be integrated with pushpit or used as a standalone arch

    • Tube size: Standard 42mm, Upgrade to 50.8mm

    • Wall thickness: 1.6–2 mm

    • Material: Stainless Steel 316

    • Finish: Mirror polished

    • Fittings: Welded fitting plates, fabricated to suit the shape of the boat.

  • This design can be improved with:

    • Davits (removable, swivel, or integrated)

    • Wind generator bracket

    • Aerial brackets

    • Radar Dome Bracket

    • Outboard crane

    • Cup holder

    • Corner seats

    • Extra grab rails

    • Extended handrails

    • Flag pole

    • Navigation light brackets

    • Ski pole

    • Extra loops

    • Cleats

    • Paddleboard storage

    • And more

  • The Valkiry design is just like  Eiviva Arch, features a more complex structure that requires precise engineering. Once all fitting positions are carefully measured and replicated, and if configured as a free-standing unit (not integrated with the pushpit), it can be installed by yourself. We strongly recommend professional installation.

  • The standard price:   £6000(+VAT)

    It is a price for this design in its basic configuration (standard completion).

    Additional features, customizations, and modifications may be available at extra cost.

  • Luxurious design featuring elegant bends and curves, crafted with bespoke metalwork tailored to perfectly enhance your boat’s aesthetics while delivering essential functionality. This design represents the pinnacle of elegance and craftsmanship, adding prestige and lasting value to your vessel.

    • Tube size: Standard 50.8mm,

    • Wall thickness: 1.6–2 mm

    • Material: Stainless Steel 316

    • Finish: Mirror polished

    • Fittings: Welded fitting plates, fabricated to suit the shape of the boat.

  • This design can be improved with:

    • Davits (removable, swivel, or integrated)

    • Wind generator bracket

    • Aerial brackets

    • Radar Dome Bracket

    • Outboard crane

    • Cup holder

    • Corner seats

    • Extra grab rails

    • Extended handrails

    • Flag pole

    • Navigation light brackets

    • Ski pole

    • Extra loops

    • Cleats

    • Paddleboard storage

    • And more

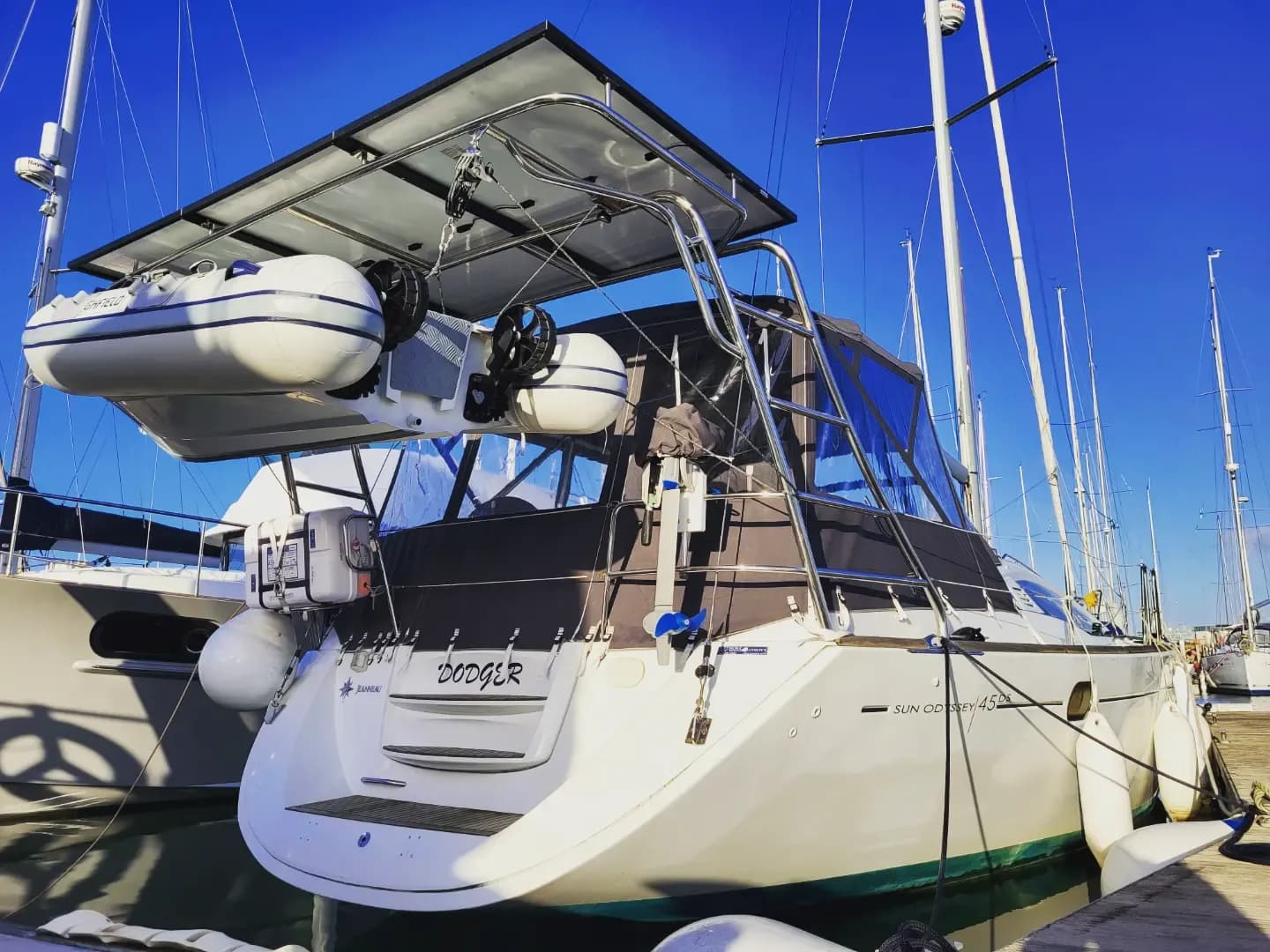

  • The Dodger Arch requires a high level of skill for installation due to its size and structural complexity. For this reason, installation is carried out exclusively by our own engineers to ensure that the quality of fitting meets the exceptional standards of the product. As a premium segment offering, we do not subcontract installation to third parties. Please note that installation is charged separately.

  • The standard price:   £7,200(+VAT)

    Price is for design in its basic configuration

    Additional features, customizations, and modifications may be available at extra cost.

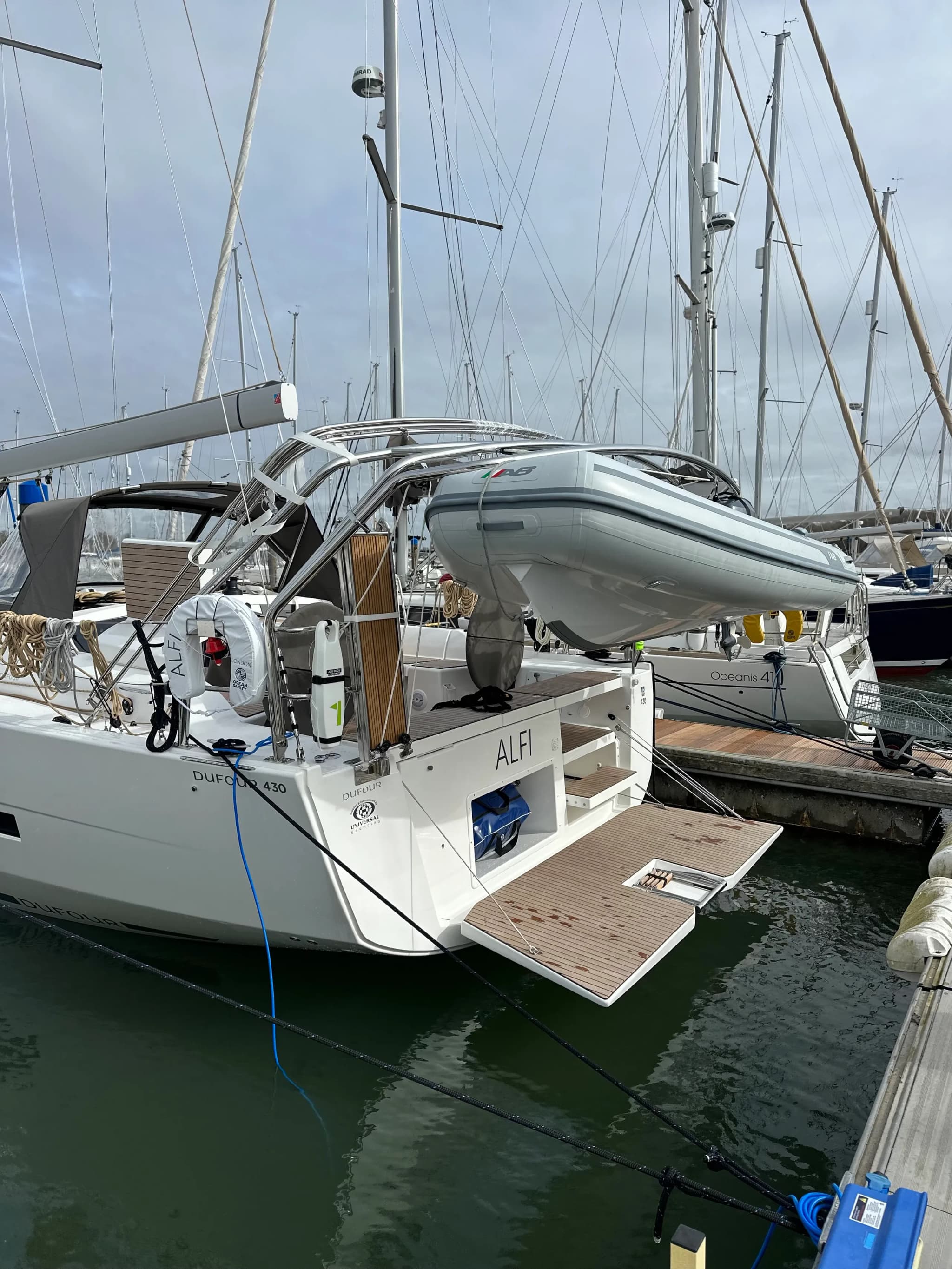

    • If you don’t find the perfect fit among our standard arch designs, don’t worry — we’re here to help. Contact us to discuss your specific needs and preferences. Our team of expert engineers will work closely with you to design, plan, and deliver a custom solar arch tailored precisely to your boat and vision.

    • From concept to completion, we ensure a seamless process and exceptional quality every step of the way.

    • Tube size: OD  25.4-50.8 mm

    • Wall thickness: 1.2-2 mm

    • Material: Stainless Steel 316

    • Finish: Mirror polished

    • Fittings: Various options avalable.

  • This design can be improved with:

    • Davits (removable, swivel, or integrated)

    • Wind generator bracket

    • Aerial brackets

    • Radar Dome Bracket

    • Outboard crane

    • Cup holder

    • Corner seats

    • Extra grab rails

    • Extended handrails

    • Flag pole

    • Navigation light brackets

    • Ski pole

    • Extra loops

    • Cleats

    • Paddleboard storage

    • And more

  • Installation for the Custom Solar Arch depends on the complexity of the structure and the specific requirements of your project. Due to the tailored nature of these designs, installation may vary from straightforward self-fit options to more advanced procedures.

    We recommend discussing installation details with our team during the design phase to determine the best approach. Professional installation services by our expert engineers are available to ensure the highest quality and a perfect fit.

  • Pricing depends on the complexity of the chosen design, any additional features selected, the location of the boat at the time of installation, and the exact position where the arch will be installed.

    For an accurate quote tailored to your specific requirements, please contact our team.

Arch Weight Guide

Understand the approximate weight of each solar arch design to assess compatibility and load distribution on your boat.

Read More

Finish Type

Learn about the different finish options available, their benefits, and how to properly maintain them for long-lasting durability and aesthetic appeal.

Read More

Tube Size Options

Discover the variety of tube sizes we offer for each design, enabling customization to your boat’s specific needs and structural requirements.

Read More

Instalation Tips and Guide

 Gain valuable insights into common challenges and practical advice for installing your solar arch efficiently and securely.

Read More
